Panzer 2 Build and question

[DragonTommie]

Hi Guys

I know this has been mentioned before but I just can't figure it out, and don't want to go wrong:

Just started the build on my Pzkpfw II C and don't know how to fix the following

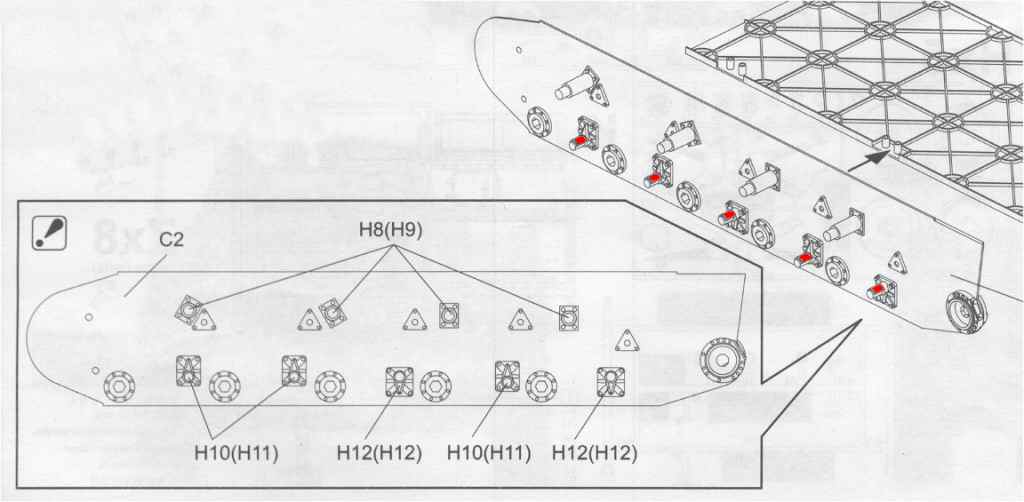

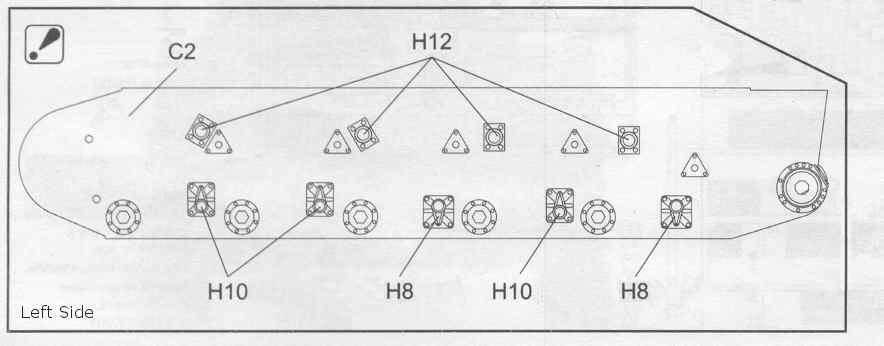

Here a part of the instructions which show how the "stops" (H10, H12 and H12) should be mounted.
The red rubber should not go on top but upside down....

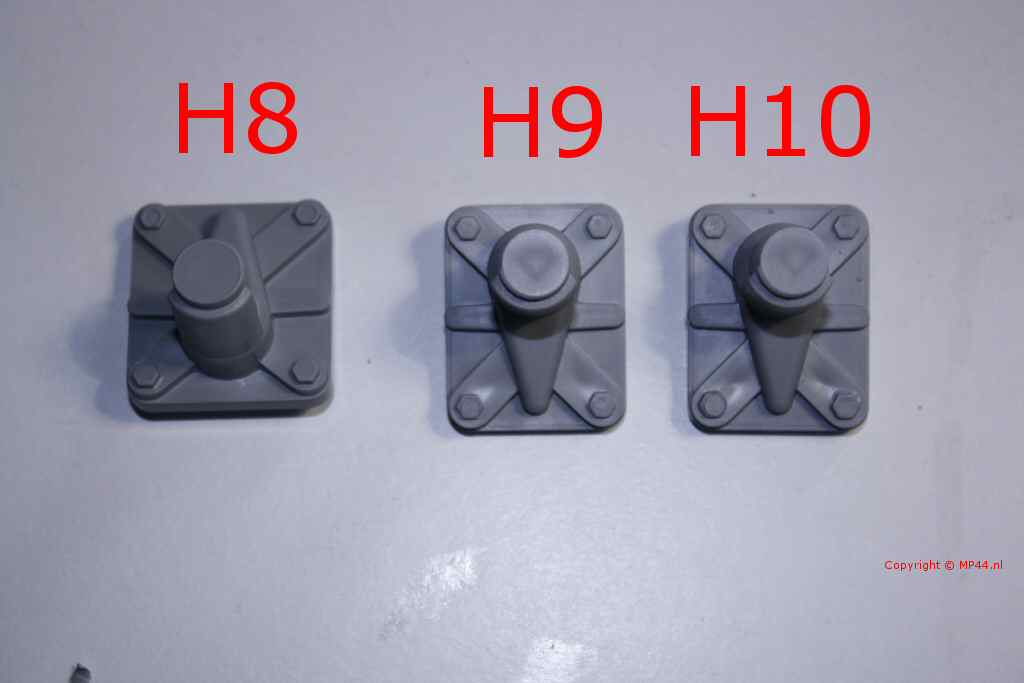

Now when I take the parts from the sprue, they have different numbers as can be seen on the following picture (H8, H9 and H10)


So my simple question is: where should I mount which piece???

Thanks for any help

[Sourdoh]

Test fit each piece. Follow the illustration and they will fit where they belong. All of them mount at slightly different angles, so be careful. The wide ones obviously will not fit where the thinner ones go, etc.

[Reef12]

Rubber faces the arm so up is the thing.

They have them upside down.

Jeff

[DragonTommie]

Thanks guys

So there is nothing I can do..... they are upside down unfortunately

Anyway thanks very much for the input

[DragonTommie]

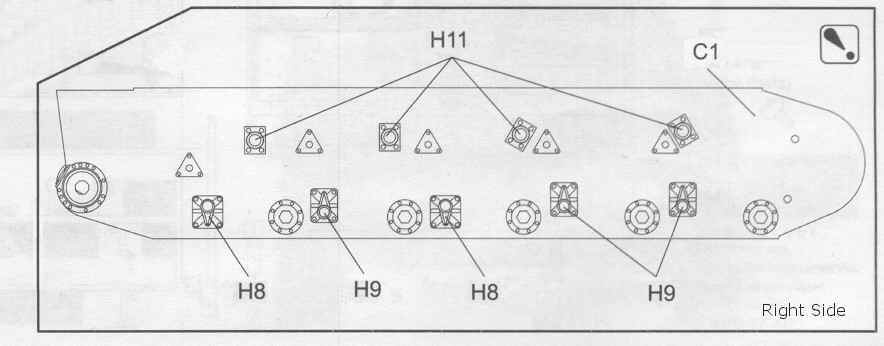

So, just for reference, here is how I'm gonna do it

Too bad the "upside down" story can't be fixed with the parts available (unless you cut the parts and re-attach them up side down of course)

[Reef12]

Just do it if I remember only one causes problems as they short you one that is needed.

Go for it.

Jeff

[DragonTommie]

Hi Guys

Not too much time on my hands, but I have found quite a simple way to get the wheel rotating without having to cut the wheels

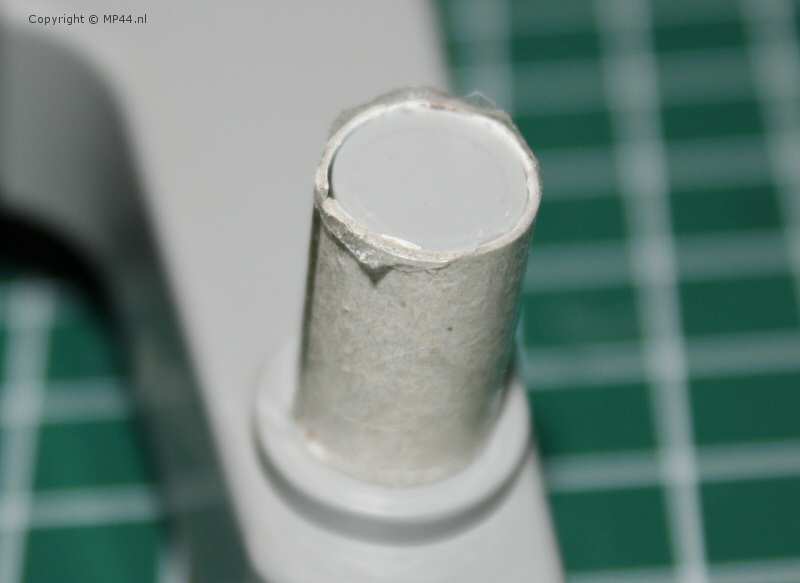

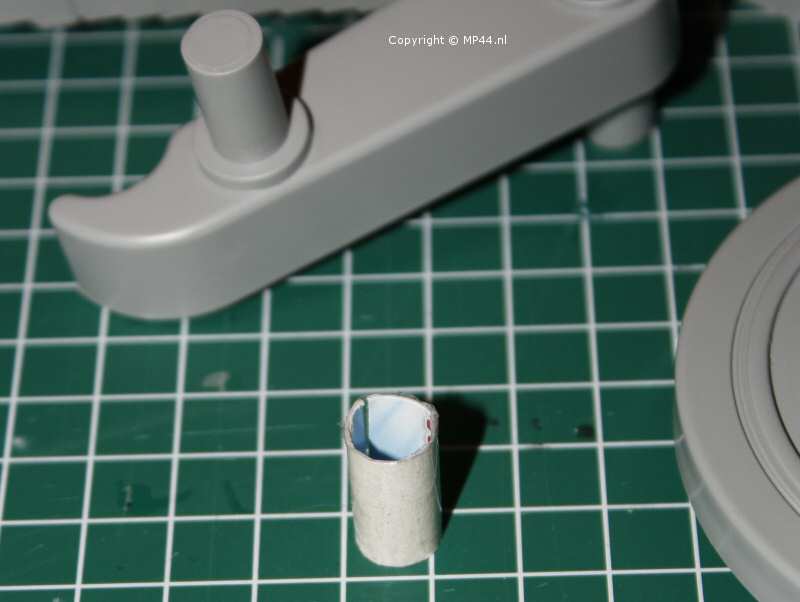

Just take a piece of thing cardboard, fold it round the wheel axe and tape it together.. (piece of cardboard is aproc 3,1 cm x 1,7 cm)

You know have a small tube...

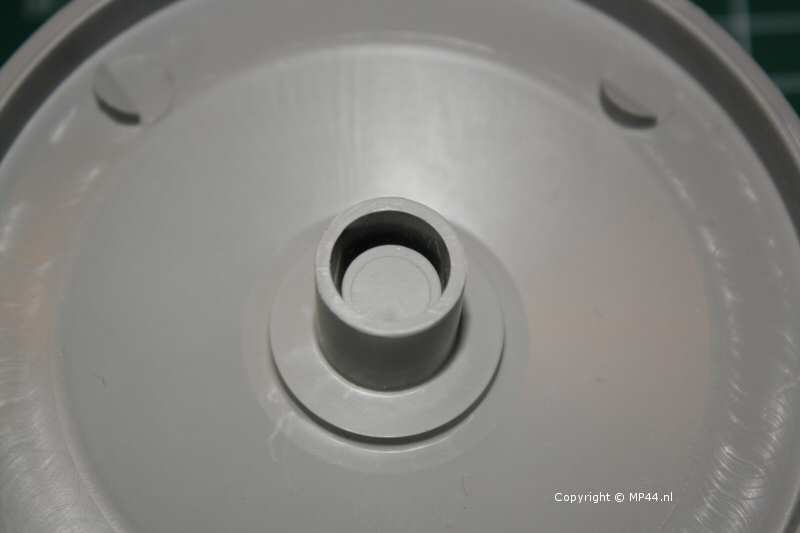

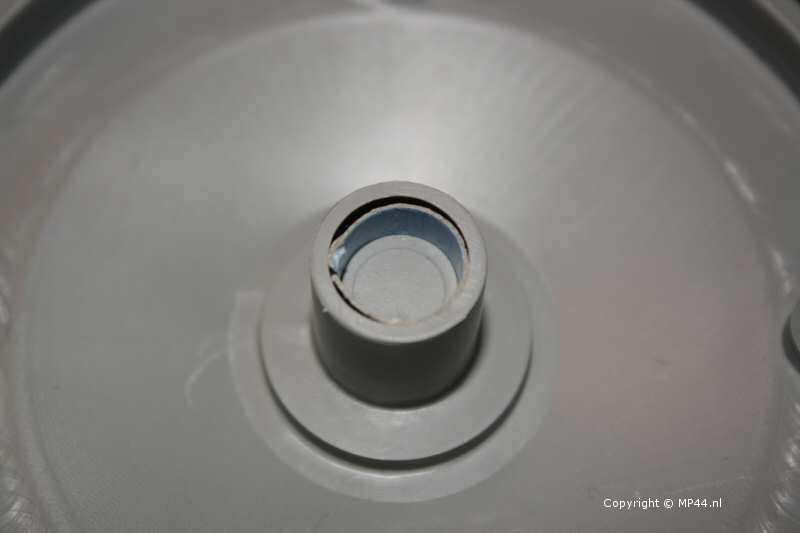

Now put the back side of the wheel on the axe and push (superglue) the tube on it...

Now you can glue the front part of the wheel on , and it turns....

I know, not a high tech solution and probably not sturdy enough for R/C, but if you just want the wheel to rotate, this is the way to go

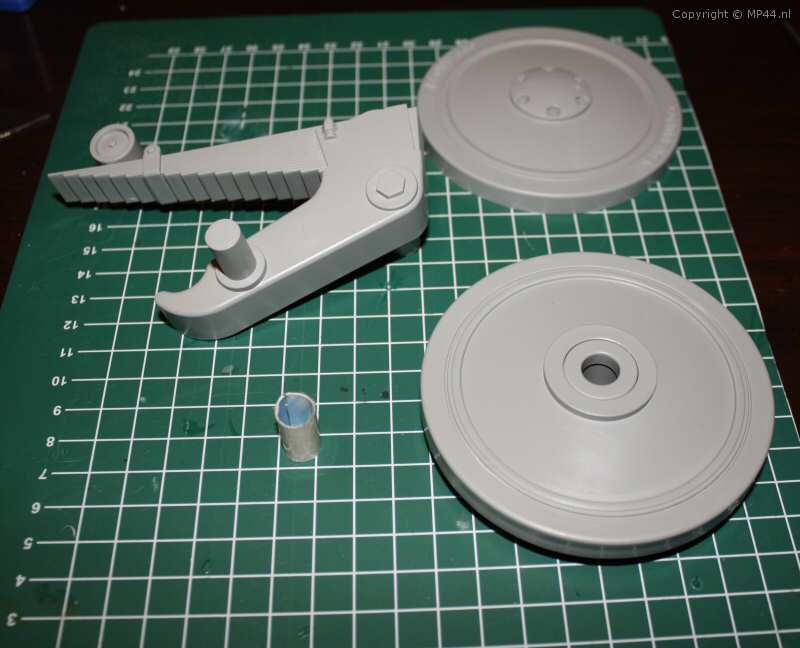

here some pics for clarification:

[Eddie Acosta]

Thanks for the info for a later project.

[Reef12]

On the upside down deal , if needed DML did the same thing on their 1/35 scale kit , which I just received yesterday.

Yep the same picture also.

Jeff

[DragonTommie]

Although I don't have very much time, I decided I couldn't live with the upside down rubbers

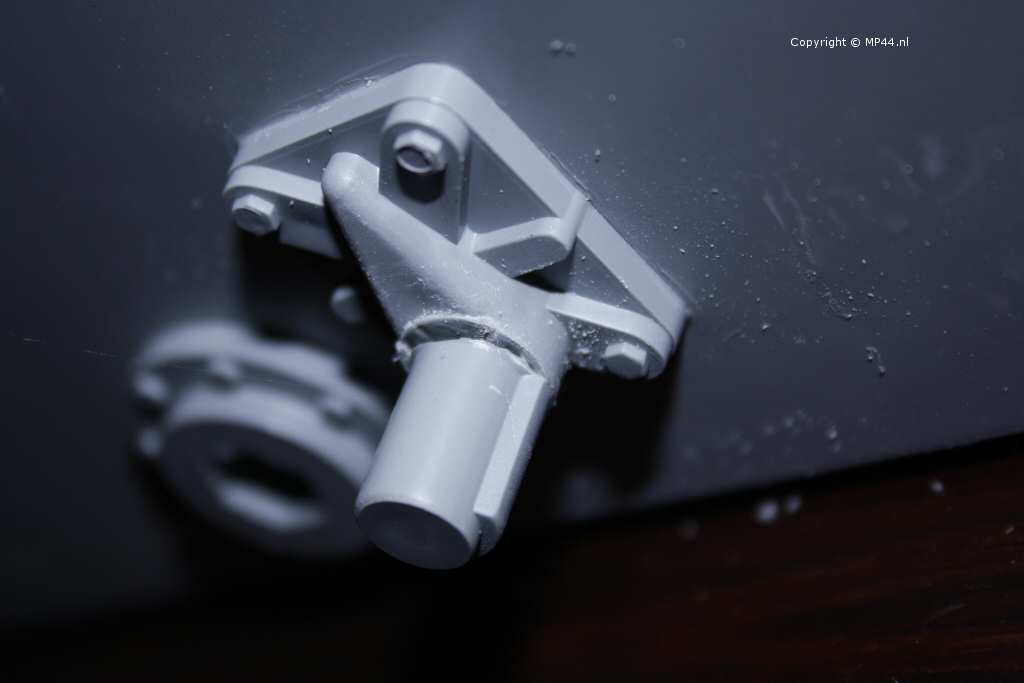

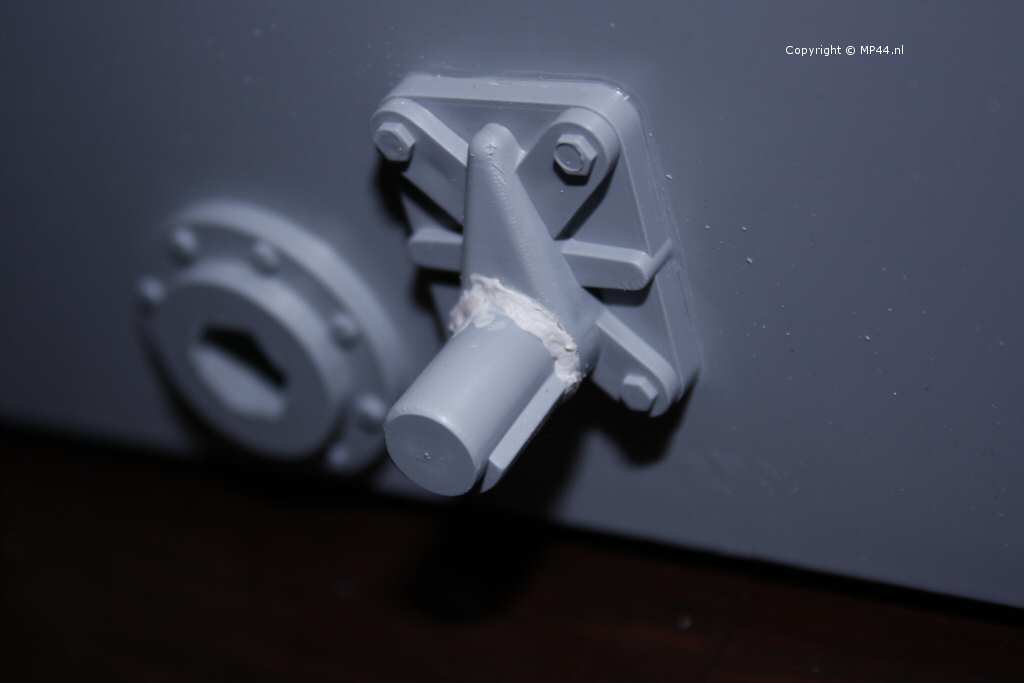

So I took out my dremel and cut them off... I re-attached them the right way and with a lot of putty, nothing can be seen

I feel a lot happier now....

Here the pictures





Of course a little sanding still has to be done !
